Managing analyses

Every app you run on CyVerse becomes an analysis: an interactive session such as a JupyterLab notebook, or a batch job. The Analyses page (https://mesa.cyverse.org/analyses/) lists them all, whether you started them in the portal, in the Discovery Environment, or from an AI agent through formation-mcp1.

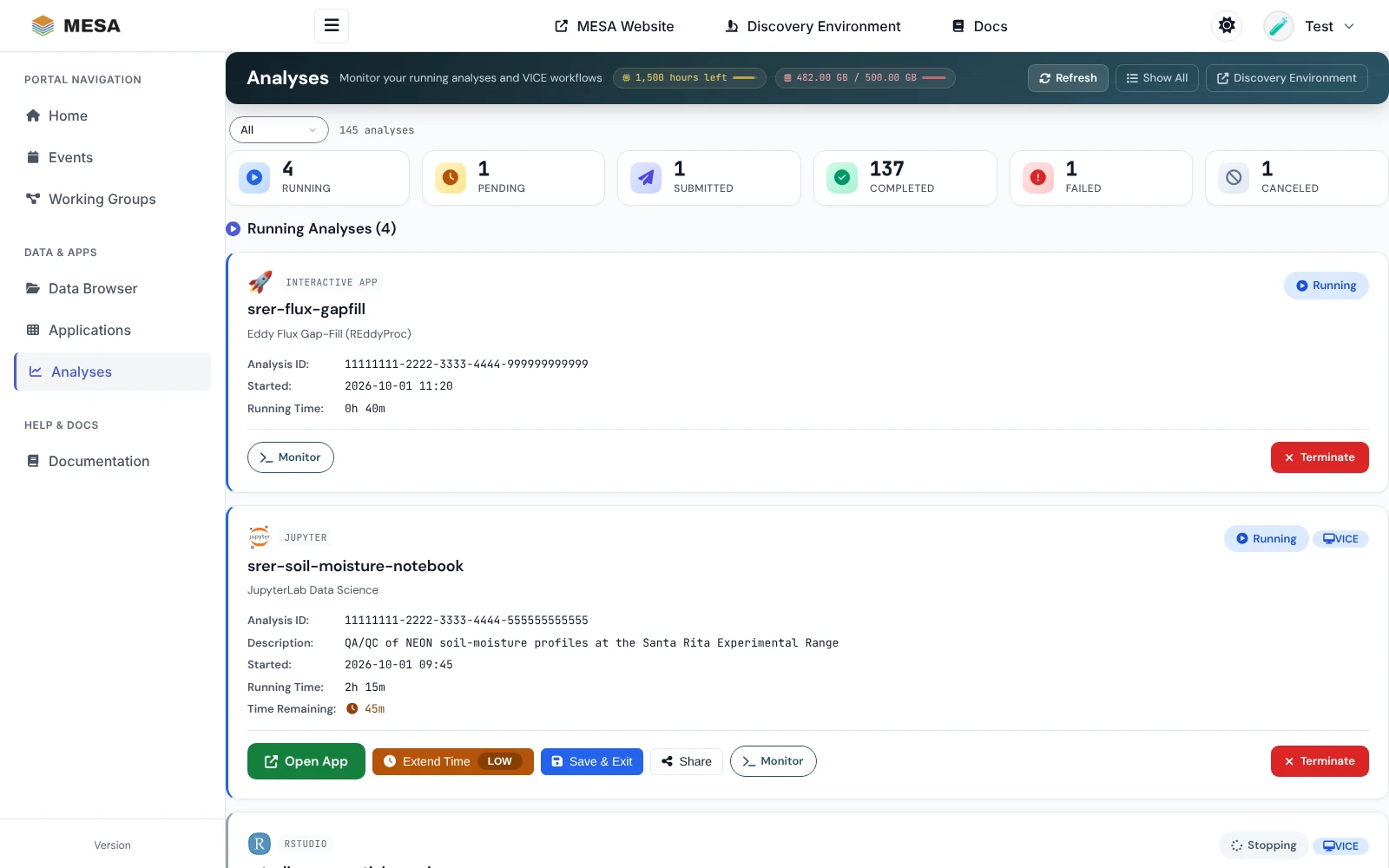

The Analyses page: quota badges, status cards, and running analyses

Read the page

  • The header shows the CPU hours you have left and your Data Store use against your quota, plus Refresh, Show All, and a link to the Discovery Environment.
  • The status cards count your analyses by status: Running, Pending, Submitted, Completed, Failed, and Canceled. Click a card, or use the menu above them, to show only that status. A count such as 100+ means CyVerse did not report an exact total.
  • Below, each status has its own list, newest first. Each card shows the analysis name, the app, the analysis ID, its description, when it started, how long it has run, and, for interactive apps, the time remaining. A VICE badge marks interactive apps.
  • Each list shows up to 100 analyses. Longer lists of completed, failed, or canceled analyses have Newer and Older links.

Statuses and actions

Status Meaning Actions
Submitted CyVerse received the request Cancel
Pending Waiting for compute resources Cancel
Running The app is running Open App, Extend Time, Save & Exit, Share, Monitor, Terminate
Stopping… You asked it to stop; CyVerse is shutting it down (10–30 seconds) None; the page updates by itself
Completed Finished View Results, Relaunch, Share
Failed Ended with an error View Logs, Retry
Canceled Stopped before it finished Relaunch

Work with a running app

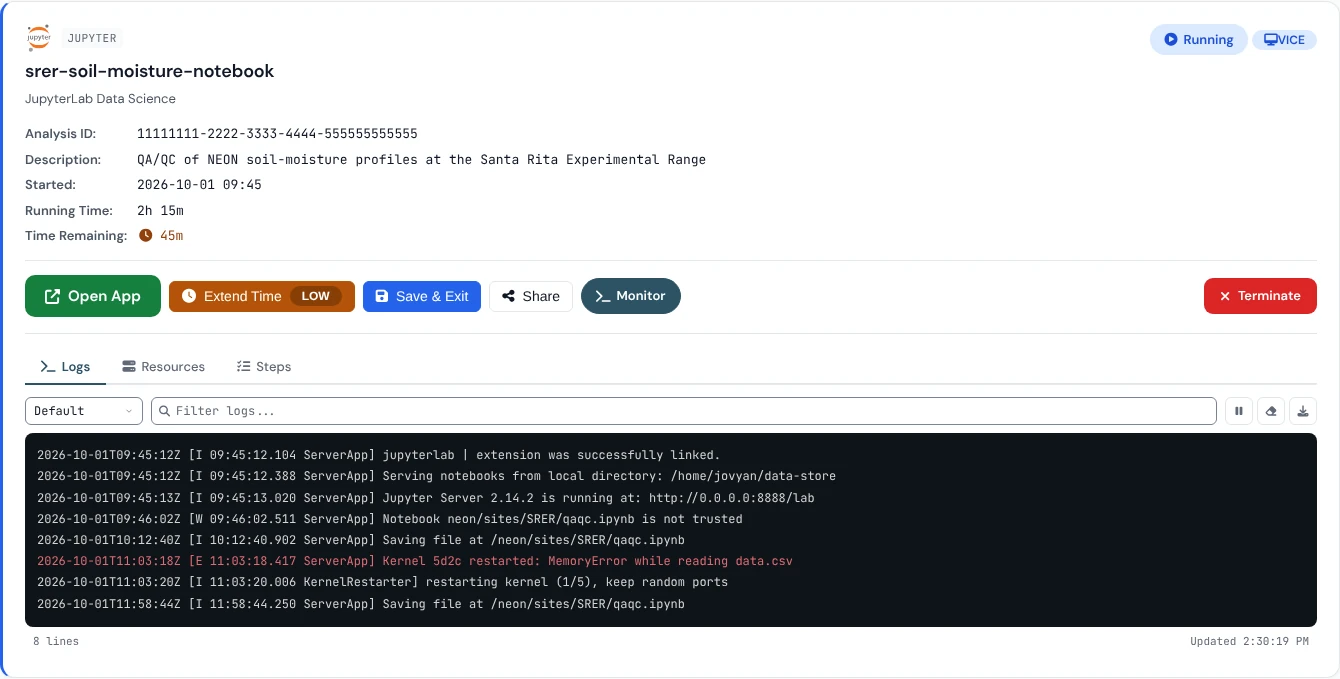

A running JupyterLab analysis with the Monitor panel open on the Logs tab

  • Open App opens the running app in a new tab. This is how you get back to a JupyterLab, RStudio, VS Code, terminal, or desktop session you started earlier.
  • Monitor opens a panel under the card with three tabs: Logs (the app's output, with a filter box, pause, and download), Resources (the CPU, memory, and other resources of the analysis), and Steps (its execution steps and their status).
  • Share lets other CyVerse users see the analysis (read only or with write access).

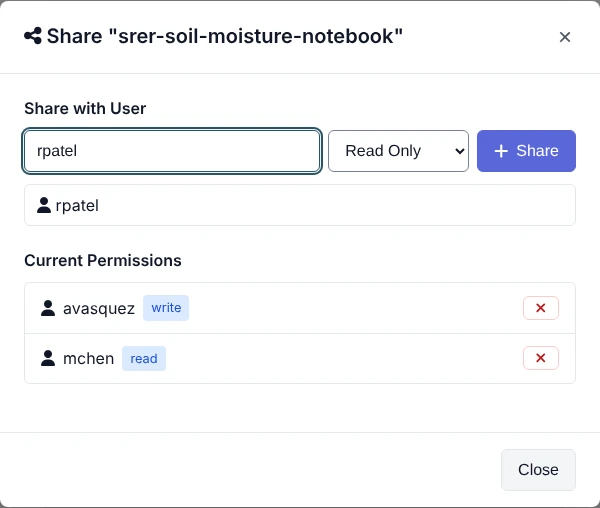

Sharing a running analysis with another CyVerse user

Keep an eye on the time limit

Interactive apps have a time limit. Time Remaining turns yellow with an hour or less left and red with 30 minutes or less, and the Extend Time button shows LOW. Click Extend Time to add time before it runs out. When the limit is reached, the app stops.

Stop an app

  • Save & Exit saves the app's outputs to your Data Store and then ends it; it shows as Completed.
  • Terminate ends it at once; it shows as Canceled. Anything not saved in your Data Store is lost.

After either, the card reads Stopping… until CyVerse confirms; you do not need to click again. Before you stop an app, save your notebooks and files under ~/data-store, and commit and push code you want to keep.

Stopping apps you no longer use frees CPU hours on your quota.

Find the results

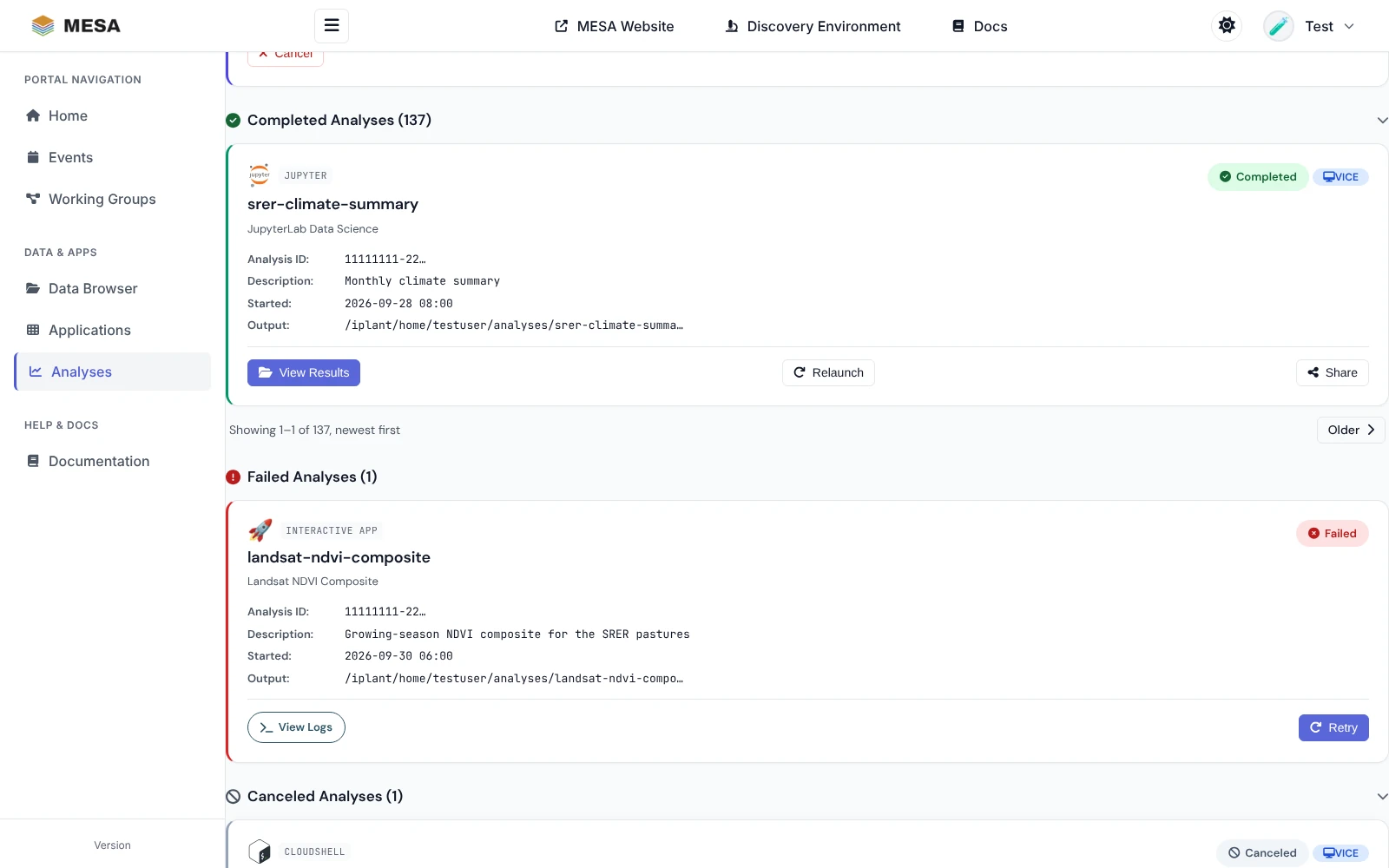

Completed, Failed, and Canceled analyses with View Results, Relaunch, View Logs, and Retry

  • View Results on a completed analysis opens its output folder in the Data Browser. Unless you chose another folder, results are under /iplant/home/<username>/analyses/.
  • Relaunch starts the app again with the same settings, which you can change first.
  • On a failed analysis, View Logs shows what went wrong (look for errors such as "out of memory" or a missing file); Retry runs it again.

Troubleshooting

Problem What to do
Stuck in Pending CyVerse is waiting for resources. Wait, or cancel and launch with fewer CPU cores, less memory, or no GPU. If it lasts more than 30 minutes, contact support.
Open App does nothing Wait for Running, allow pop-ups for mesa.cyverse.org, and try again.
"Your CyVerse session has ended" Click Sign in again, then retry. A stop you already sent still goes ahead.
The app stopped unexpectedly Check whether the time limit ran out, and look in Monitor → Logs for memory errors.
No Extend Time button It is offered only for running interactive apps, and not while the app is still starting.
Results are missing Make sure the analysis completed, then refresh the Data Browser; a job may still be writing files.

  1. MESA Portal Analyses page, https://mesa.cyverse.org/analyses/; MESA Portal Analyses user guide, https://mesa.cyverse.org/docs/. ↩
